EzRun Combo MAX8 – 4274SL 2200kV 2-6S 1/8 XT90-Kontakt
Artikelnummer
HW38010400
Beskrivning
I lager
2 595.00 kr
Ytterligare information
| Tillverkare | |
|---|---|
| Applikation | |
| Motortyp | |
| kV-värde | |
| Motor diameter | |
| Motor längd | |
| Motoraxel Längd | |
| Motoraxel diameter | |
| Effekt Peak | |
| Max spänning | |
| Inkluderar även |
EzRun MAX8 ESC & 4274-2200Kv Sensorless Brushless Combo Set with XT90 Plug
This is a brushless Hobbywing EzRun combo set made for 4WD 1/8 scale Trucks, Stadium Trucks & Monster Trucks to run between 4-6s LiPo batteries (dual 2s or dual 3s with XT90 plugs).
EzRun 4274-2200KV Brushless Motor Specifications:
- Type: 1/8, Brushless, Sensorless Motor
- Poles: 4
- KV Rating: 2200
- LiPo Cells: 2-6S
- Shaft Diameter: 5mm
- Outer Diameter: 42mm
- Length: 74mm
- Weight: 418g
- Ballbearing (front): ID5 x OD16 x T4 mm
- Ballbearing (rear): ID5 x OD13 x T4 mm
EzRun MAX8 ESC Specifications:
- Vehicles: 1/8 Stadium Trucks/Monster Trucks
- Type: 1/8, Brushless, Sensorless, WP
- Size: 59.8 x 48 x 36.8mm
- Weight: 174g
- Cont./Peak Current: 150A/950A
- Input Voltage: 3-6S LiPo/9-18 Cells NiMH
- BEC Output: Switch Mode: 6V/7.4V，6A
- Input Wires: 10AWG-200mm
- Output Wires: 10AWG-200mm
- Input Connectors: XT90
- Output Connectors: 6.5mm Female Gold (pre-soldered onto the PCB)
- Fan Size: 30 x 30 x 10mm

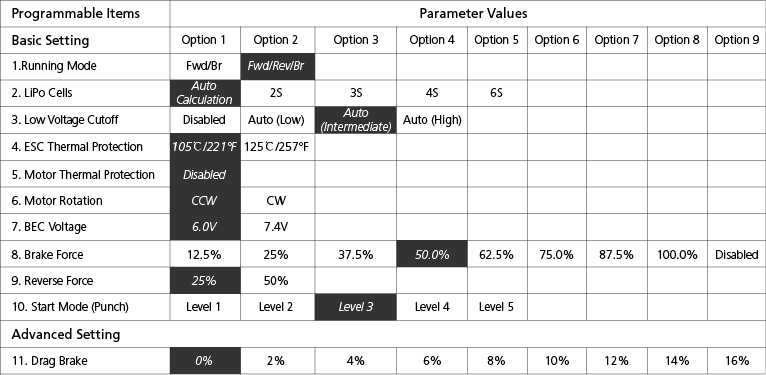

ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- Program Port: FAN/Program Port
- Firmware Upgrade: Supported
