SW-0267MG Servo 6Kg 0,135s Metalldrev Mikro WP

Savöx SW-0267MG – Micro Size Digital Servo, DC Motor, Waterproof, Metal Gears

The SW-0267MG is a budget friendly, waterproof, high torque, digital micro servo. The wire enters vertically from the bottom of the case. This is a great upgrade if you’re looking to drive your RC vehicle in any condition yet unable to use higher voltage to obtain more power. This is an excellent replacement for Traxxas 2065A/2065R/2065T.

Features:

• 3-Pole Brushed Motor
• Fast Response
• Composite Case
• Ball Bearings
• Metal Gears

Specs:

• Line: BLUE LINE
• Application: CAR/BOAT
• Servo Size: Micro
• Operating Voltage: 4.8V-6.0V
• Speed @ 4.8V: 0.16s/60°
• Torque @ 4.8V: 5.0kg/cm
• Speed @ 6.0V: 0.135s/60°
• Torque @ 6.0V: 6.0kg/cm
• Amplifier Type: Digital Controller
• Motor Type: DC
• Case Type: Composite
• Protection: Waterproof (IP67)

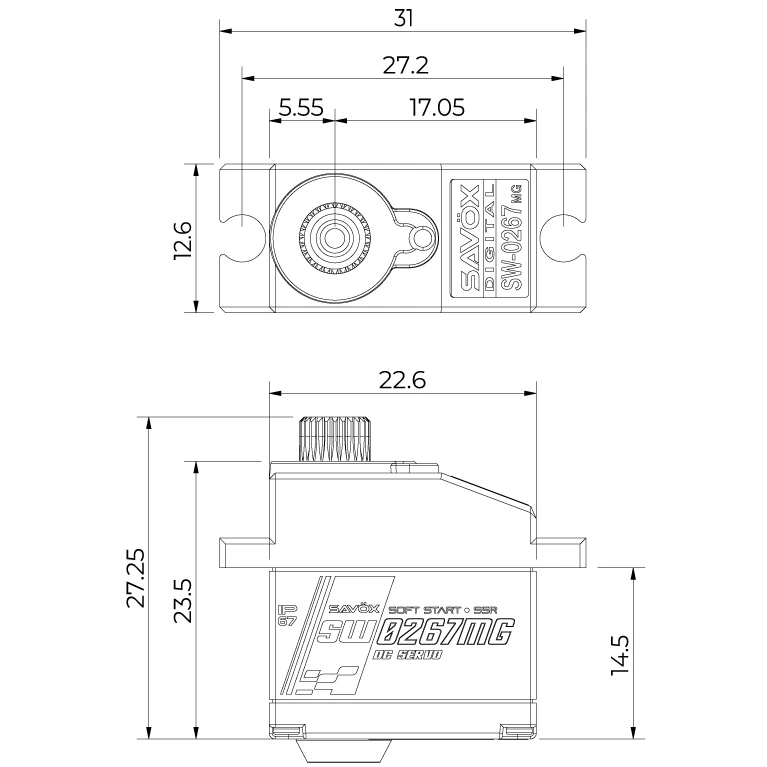

• Dimensions (LxWxH): 22.6×12.6×23.5mm
• Weight: 14g

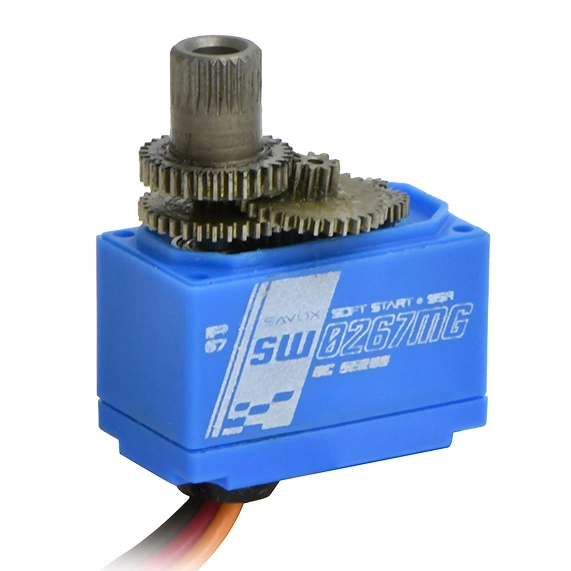

• Gear Type: Heavy-Duty Metal
• Compatibility: Normal
• PCB Board:
• Horn Gear Spline: 21T (Φ4.8)
• Rotating Direction: Counterclockwise (when 1000→2000μsec)
• Max Travel: Counterclockwise (when 1000→2000μsec)
• Operating Travel: 100° (when 1000→2000μsec)
• Neutral Position: 1500μsec
• Bearing: 1x Ball Bearing
• Potentiometer: VR
• Cable Diameter: 26AWG
• Cable Length: 450mm ±5mm
• Connector: JR
• Stall Current @ 4.8V: 1300mA
• Operating Current @ 4.8V: 80mA
• Stall Current @ 6.0V: 1600mA
• Operating Current @ 6.0V: 100mA
• Idle Current: 5mA
• Dead Band Width: 3-5μsec
• Frequency Range: 50-360Hz
• Control System: Pulse Width Modification
• Operating Temperature: -10°C to 50°C
